Lycopene Extraction from Tomato

HOME > Oil Extraction Technology > Biological Pigment Extraction

extracting red pigment of tomatoLycopene, obtained from tomato species, is a kind of carotenoid and phytonutrient. It has many benefits for human body. For instance, it prevents degenerative diseases, protects DNA from damage and reduces risks of cancer, heart disease and age-related macular degeneration. Besides, lycopene is also great substance for cosmetics. Some fruits and vegetables contain lycopene, such as tomatoes, watermelon, papaya, guava, sweet red peppers, mango, carrots, red cabbage, and pink grapefruits. But, the content of lycopene in tomatoes is the highest. The average content of carotenoids in tomatoes was 0.4-0.75mg/100g, and the content of carotenoids in the pulp was about 8-12mg/100g. The content of lycopene was 85-90%, which was dark red. If the content of lycopene is 70 ~ 80%, orange red. So, tomatoes or tomato-based products are the ideal raw material to extract lycopene.

Best Method to Extract Lycopene from Tomato

At present, there are several methods to extract lycopene from tomato, such as smashing method, traditional solvent-extraction method, chemical synthesis method and supercritical extraction, microbiological fermentation method, etc.. But the most commercial and efficient method to extract lycopene is Low Temperature Sub-critical Biological Extraction Technology that can ensure high quality of extracted lycopene

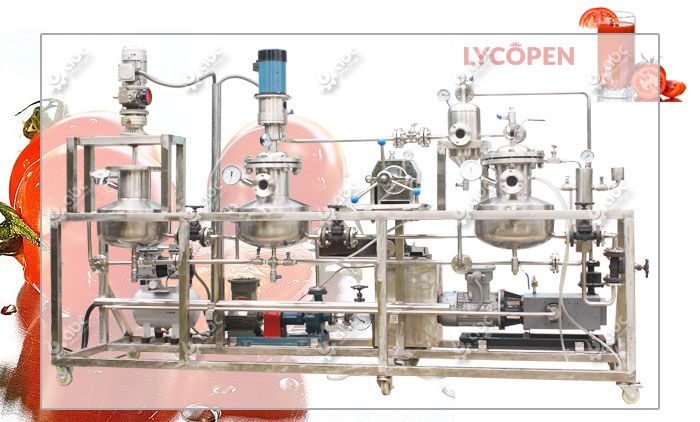

lycopene extraction machine for sale low cost
Capacity: 5~150L (extraction pot volume)

Detailed procedure of lycopene extraction

The detailed procedure of lycopene extraction from tomato with sub-critical solvent extraction method is indicated below.

  • Use professional machine pretreat tomatoes into small powder
  • Load tomato powder into the extraction pot
  • Pour sub-critical solvent into extraction pot for countercurrent extraction
  • Pump liquid extract within extraction pot into evaporation system
  • Gasified residual solvent in the extraction pot will flow into the compressor through inlets. And the residual solvent will be compressed, liquified and condensed for recycling. And the slag will be ejected out from the processing system.
  • Separate the extract and solvent in the evaporation system through vacuum evaporation
  • Separated solvent is recycling after compression and liquefaction. And Separated extract is the objective product

extracting lycopene from tomato species

procedure flow chart of lycopene extraction

Advantages of Sub-critical Solvent Extraction for Lycopene

Sub-critical solvent extraction technology fully makes use of the principle that similar organic matter can be dissolved by each other and uses the sub-critical solvent as extraction agents to transfer the liposoluble components within raw material into liquid solvents. Then, by the process of reduction vaporization, objective products are separated out from the solvents. The whole process is under low temperature and normal pressure circumstance. Therefore, the nutrients contents and natural components won’t be damaged, which totally promise high quality final products.
Compared to supercritical extraction methods, sub-critical solvent extraction have many advantages:
  •   Requires less investment for extraction equipment
  •   It can form large-scale production due to normal pressure for extraction equipment
  •   Low production cost, environmental protection, energy-saving
  •   It has been well applied in many fields, such as Precious Oils Extraction, Capsanthin Red Pigment Extraction, Curcumin Extraction Plant and more.

Market Analysis of Lycopene

lycopene global marketIn today’s global market, there are two kinds of lycopene: synthetic lycopene and organic lycopene. And, organic lycopene is popular most and its demand keep increasing, because it contains anti-cancer properties that have good effect to against degenerative diseases. What’s more, it has been applied in many industries that is related to human life, such as cosmetics, pharmaceuticals, food & beverages, dietary supplements and more. It is ideal natural colorants. In conclusion, the global demand for organic lycopene will grow increasingly in the next few years.
